DIN 17175 Grade 10 CrMo 9-10 | 1.7380 | Seamless Carbon Steel Pipe
Chemical Components
| Grade | Chemical composition in % by mass | ||||||||
| C | Si | Mn | P | S | Cr | Mo | N | Cu | |
| 10 CrMo 9-10 | 0.14 max | 0.5 max | 0.4-0.8 | 0.02 max | 0.01 max | 2 – 2.5 | 0.9 – 1.1 | 0.012 max | 0.3 max |
Low-carbon Cr-Mo steel for elevated temperature pressure equipment. Excellent creep resistance up to ≤ 590°C. The standard grade for boiler tubes, headers, and pressure vessels in power generation and petrochemical industries.

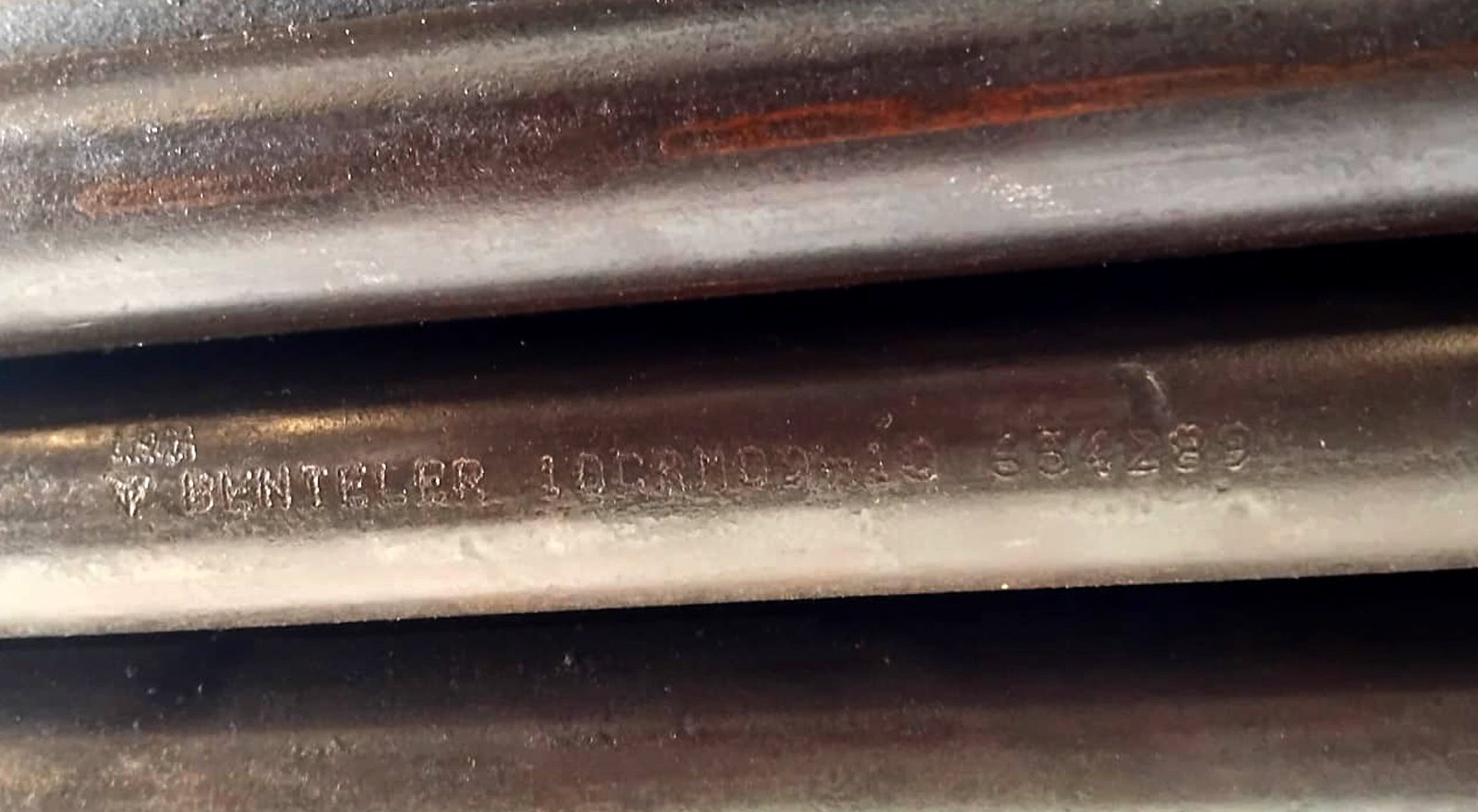

READY STOCK BOILER TUBES
| Grade | Merek | OD | Thickness | Length |
| DIN 17175 Grade 10 CrMo 9-10 | Benteler | 38,1 | 5,0 | 8.000 |
| DIN 17175 Grade 10 CrMo 9-10 | Benteler | 50,8 | 4,1 | 9.000 |
| DIN 17175 Grade 10 CrMo 9-10 | Benteler | 63,5 | 3,6 | 9.000 |
| DIN 17175 Grade 10 CrMo 9-10 | Benteler | 76,2 | 3,6 | 9.000 |
